RS485 Can Hat pour Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH, Autoriser la Communication Longue Distance Via la Fonction RS485/CAN, Intégrée Contrôleur Can MCP2515 Via SPI Interface

Marque: Waveshare
Modèle du CPU: MediaTek MT8125
Technologie de connectivité: GPIO

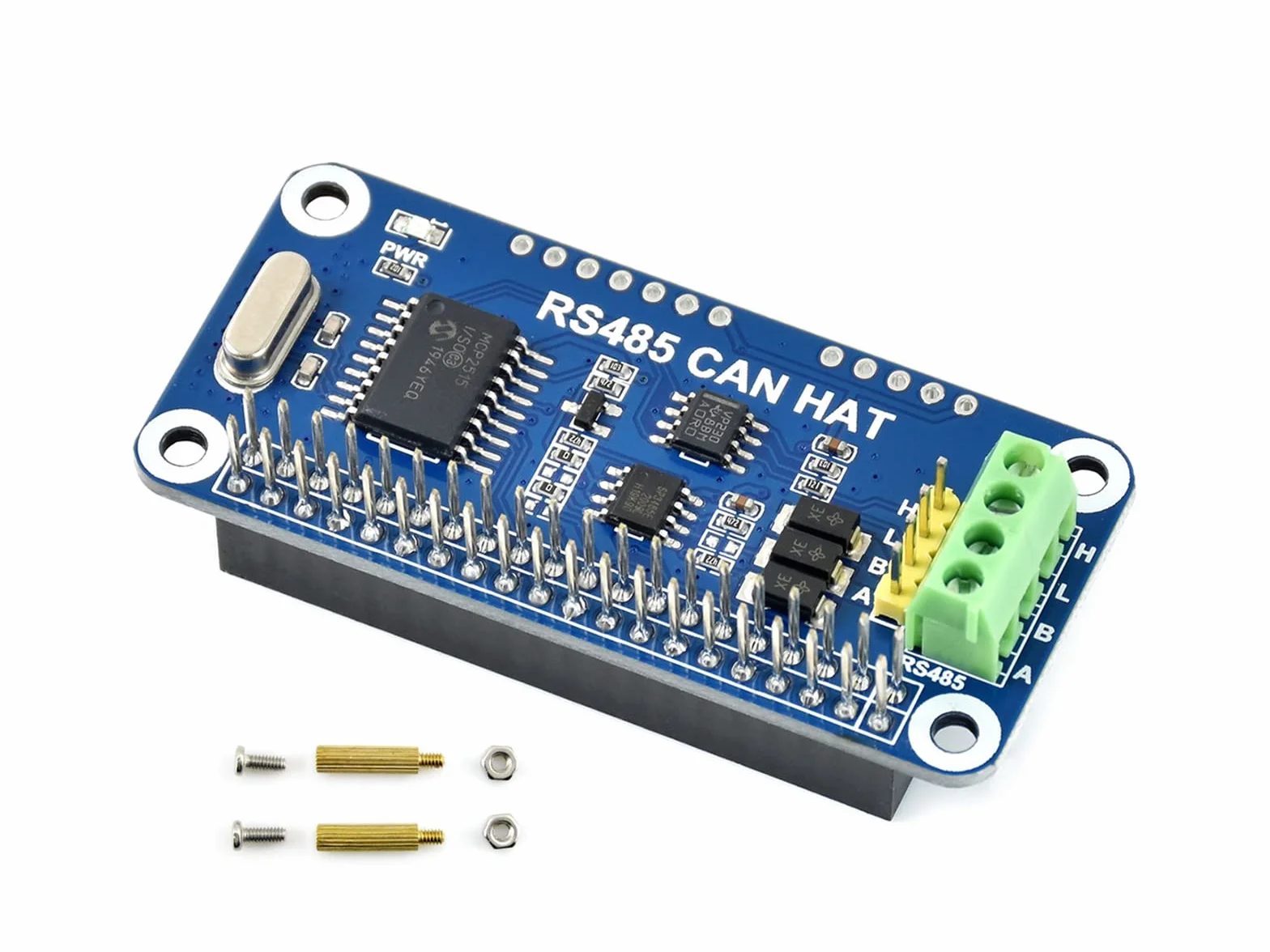

Composants inclus: RS485 CAN HAT, RPi vis de fixation (2 pièces)
Fabricant de CPU: VIA
Norme de communication sans fil: Bluetooth
Appareils compatibles: Raspberry Pi 4B, Raspberry Pi 3B+, Raspberry Pi 3B, Raspberry Pi 2B, Raspberry Pi B+, Raspberry Pi A+, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi WHVoir plus
Technologie de mémoire RAM: DDR3
Dimensions du produit: 6,5L x 6,5H centimètres
Nombre d’emballages: 1

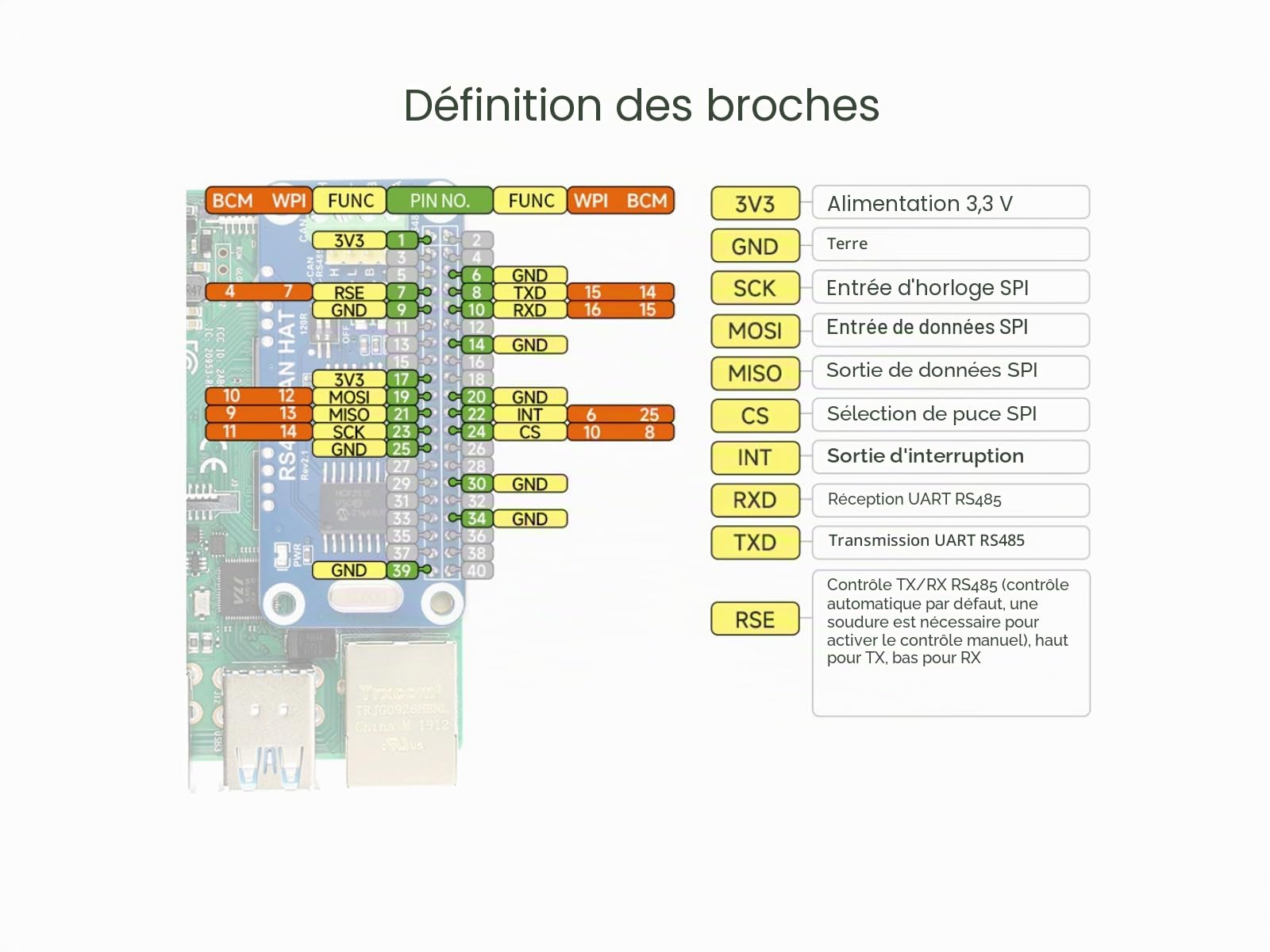

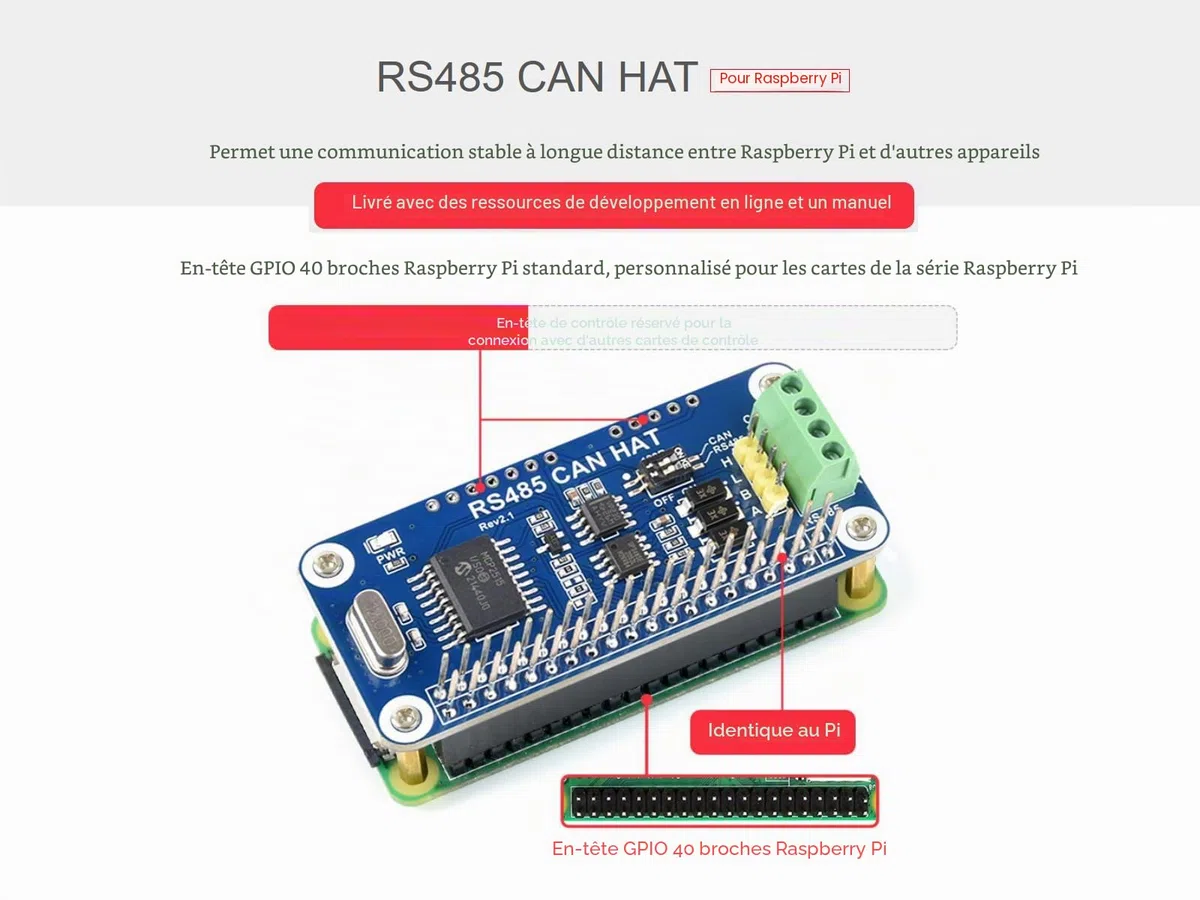

- RS485 CAN HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH, with standard Raspberry Pi 40PIN GPIO extension header

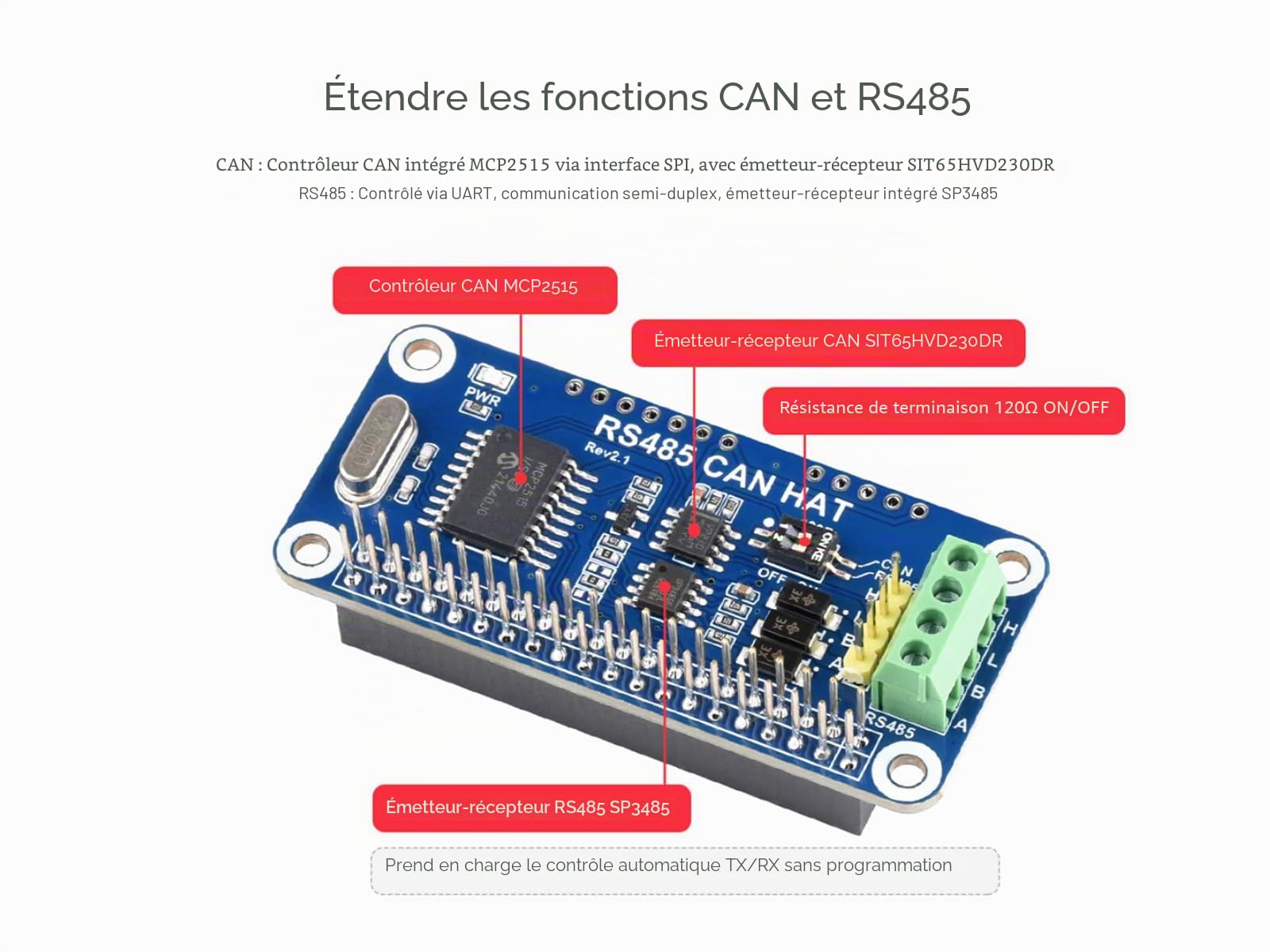

- CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
- RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

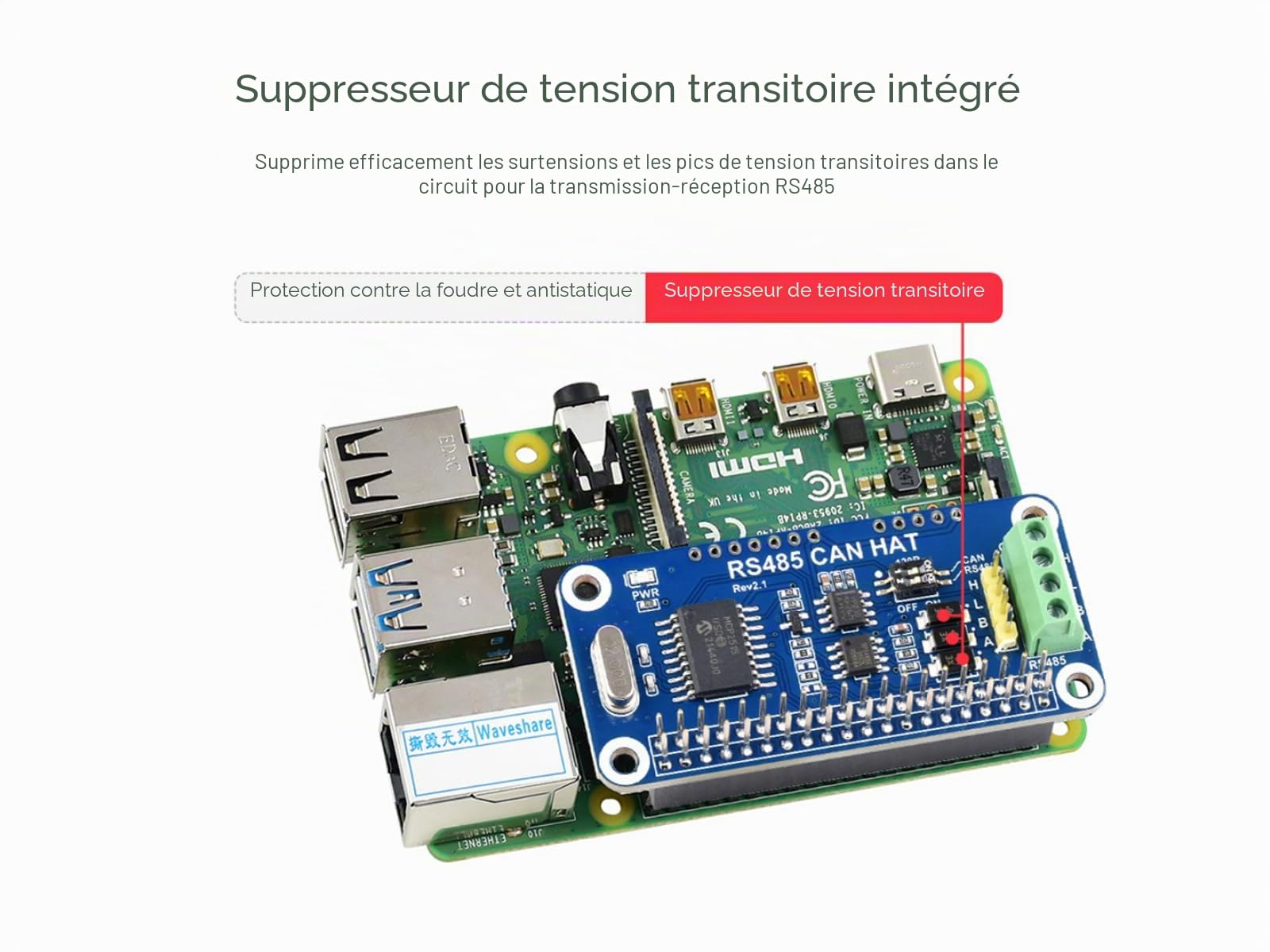

- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic

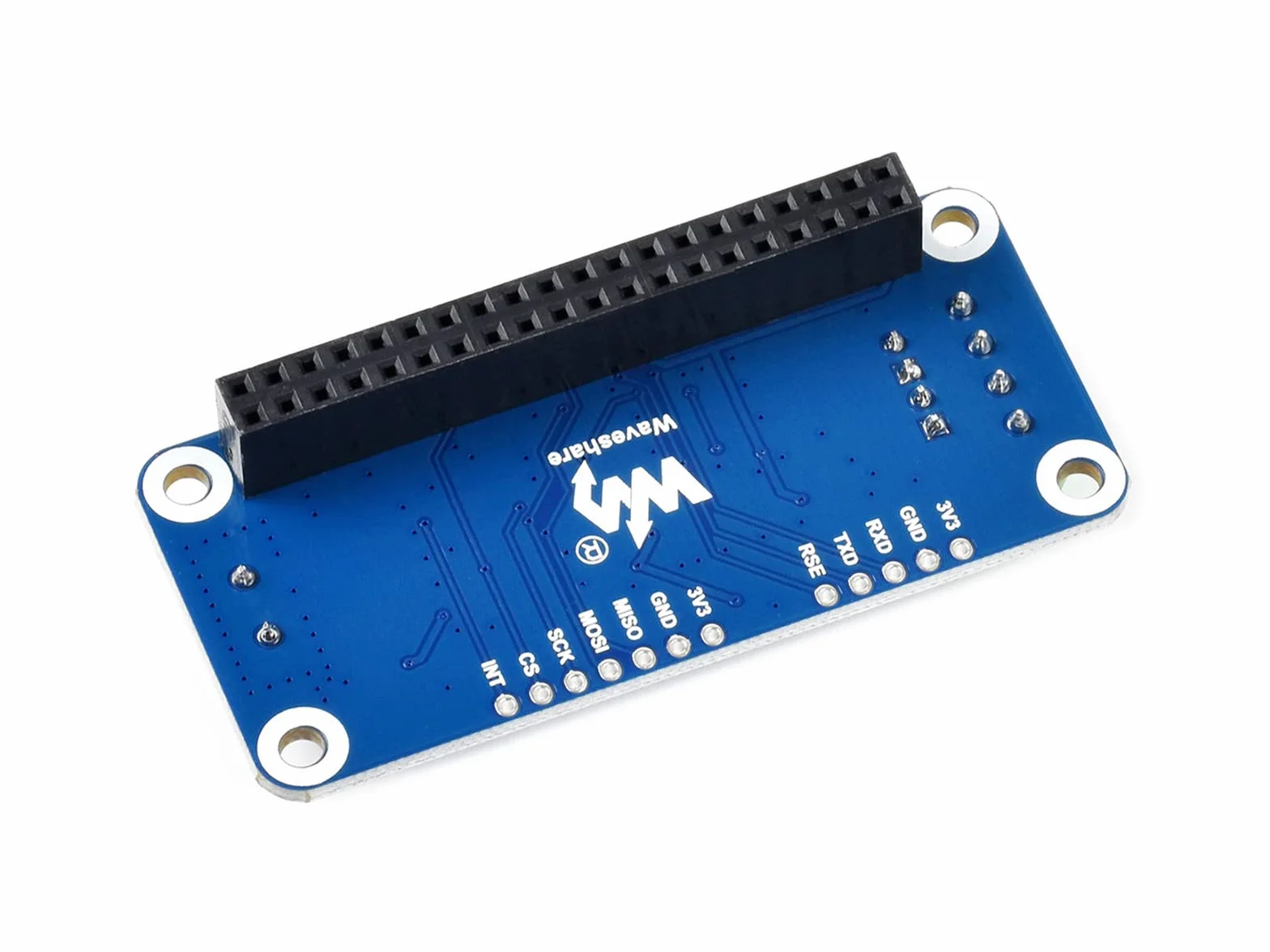

- Reserved control pins, allows to work with other control boards, comes with development resources and manual (examples in wiringPi/python)
